SM IE: More work on the primary timing chain

I call my friend Philippe for help to remove the engine and gearbox. They came out without too much trouble. I just thought I could let the first exhaust pipes in place but we had to remove the right side pipe, this part was quite difficult.

smie_329

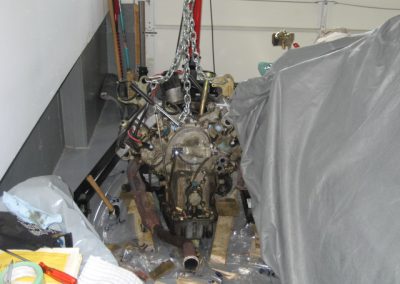

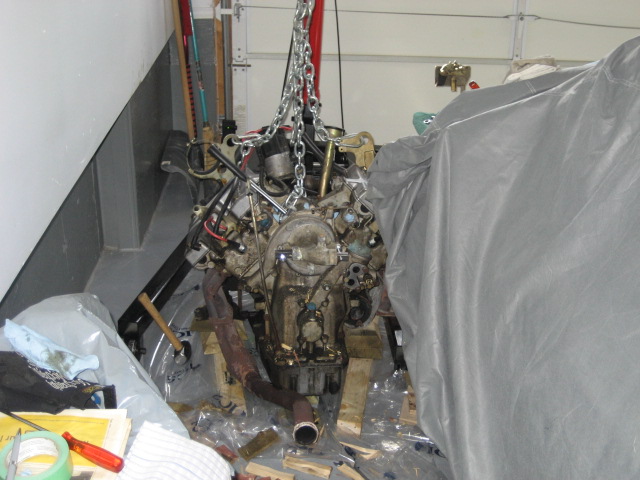

Here is the drivetrain immediately after its removal

smie_330

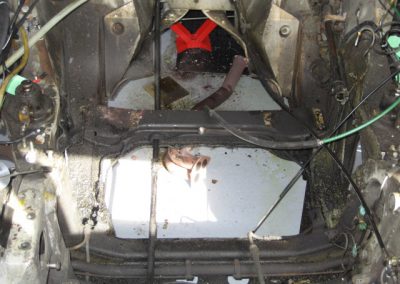

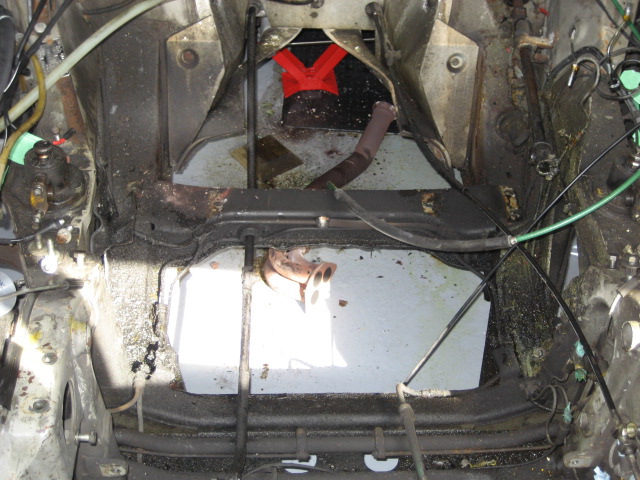

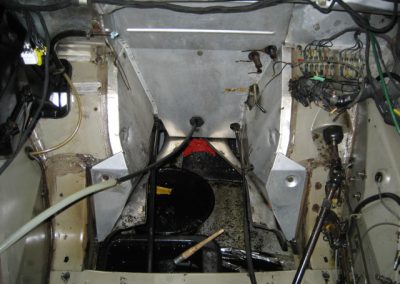

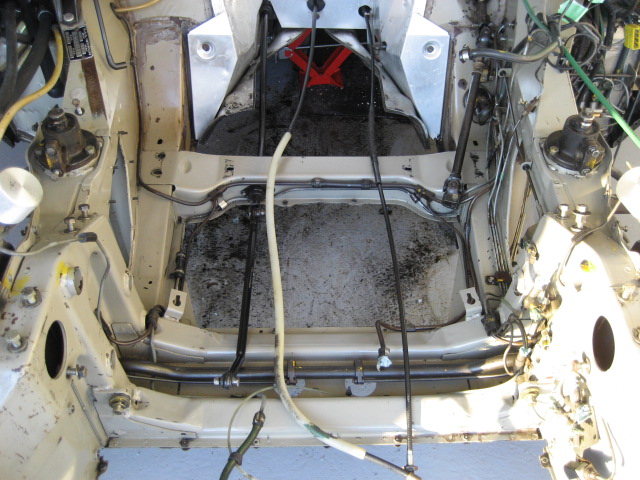

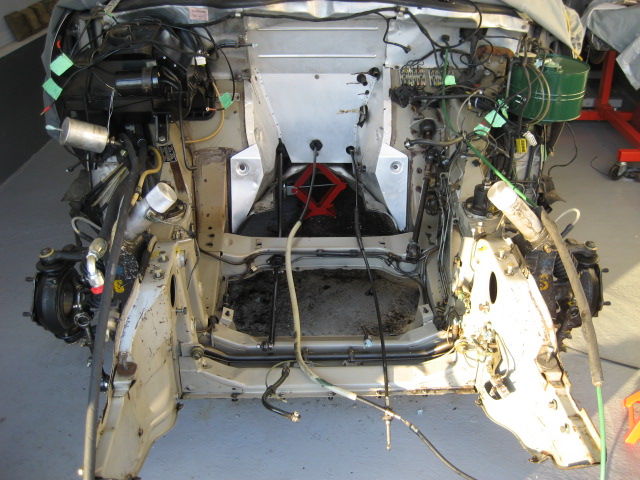

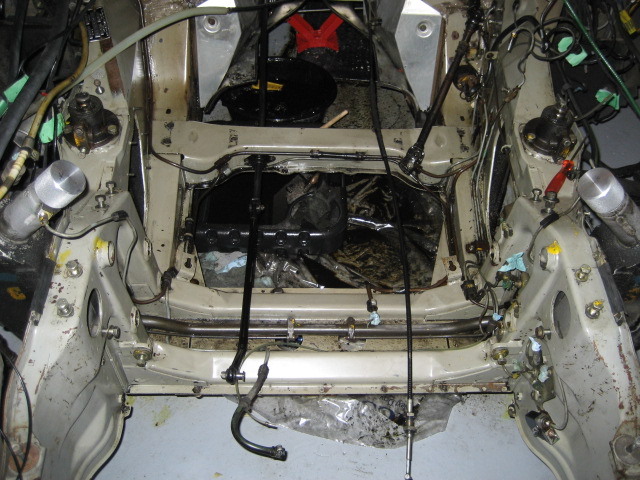

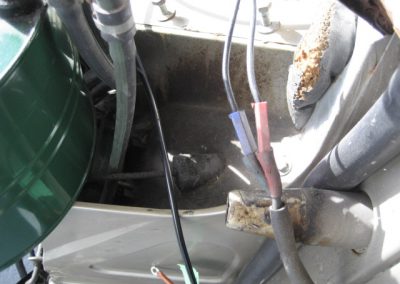

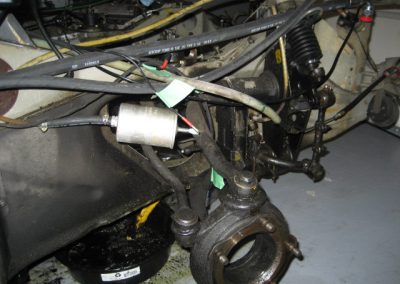

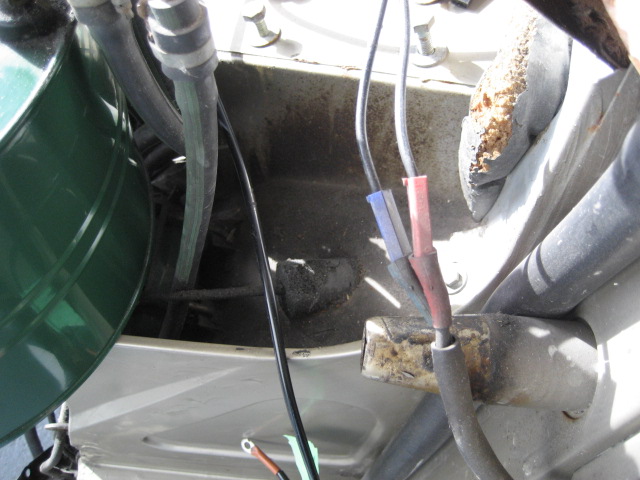

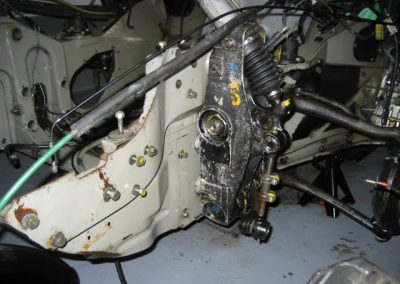

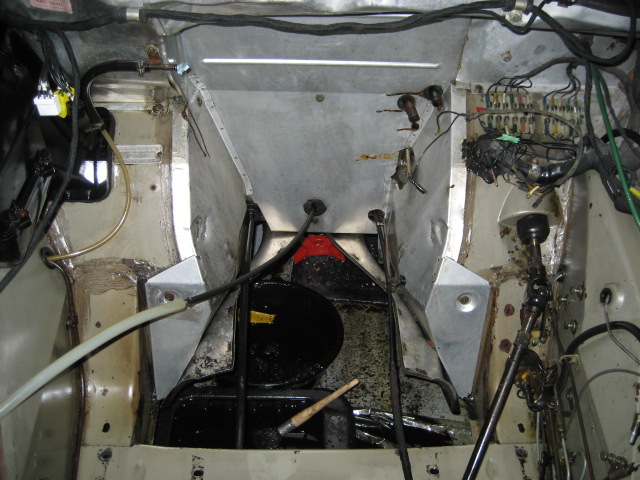

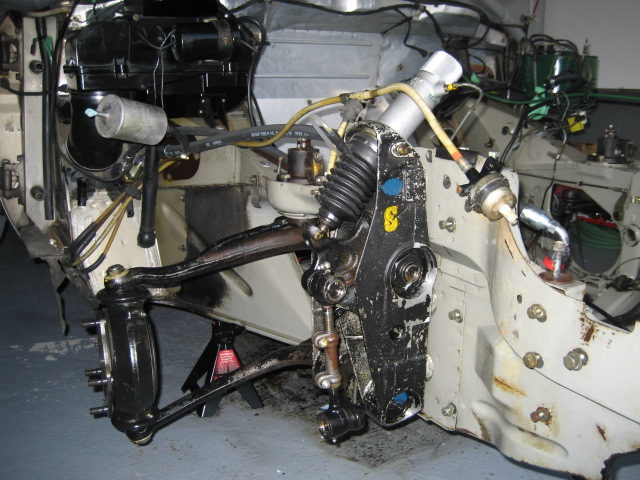

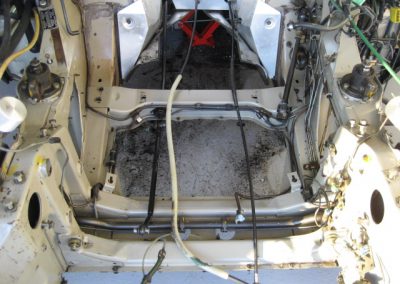

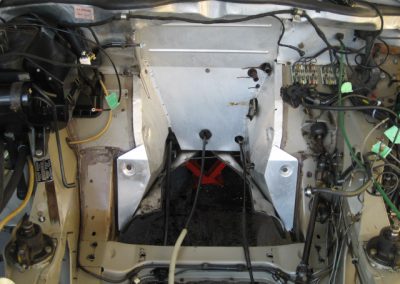

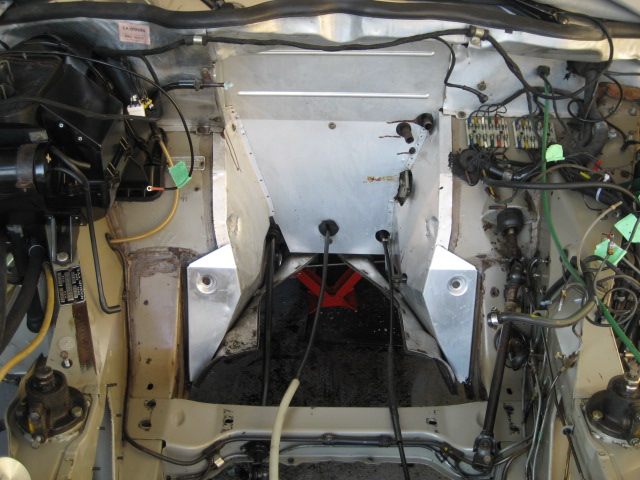

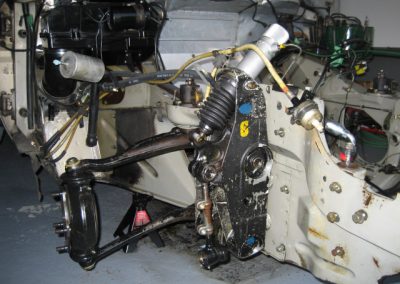

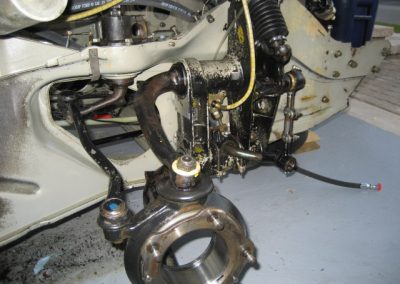

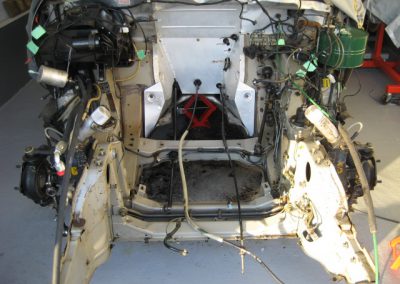

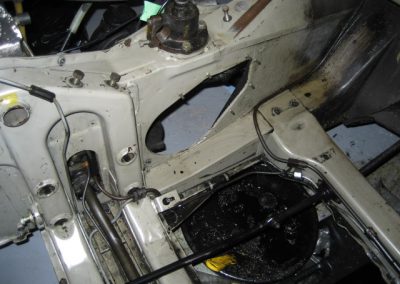

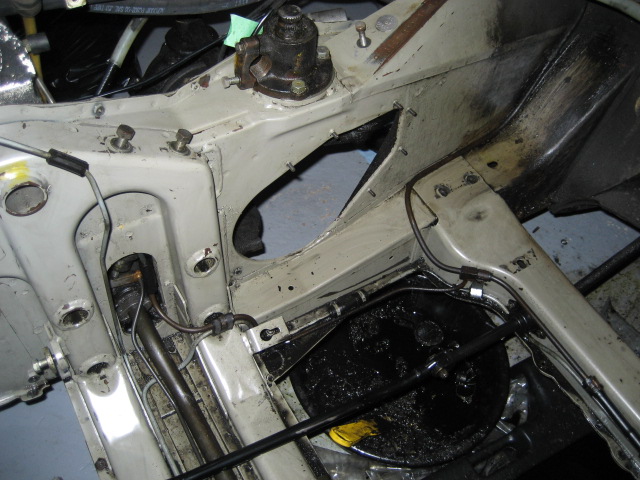

The engine bay is suddenly empty

smie_331

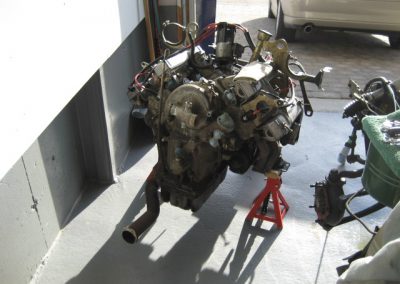

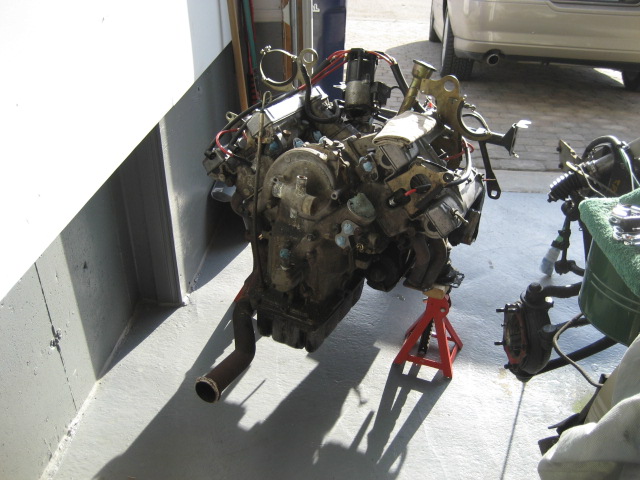

I put the drivetrain in a more convenient location, but space is limited anyway

smie_332

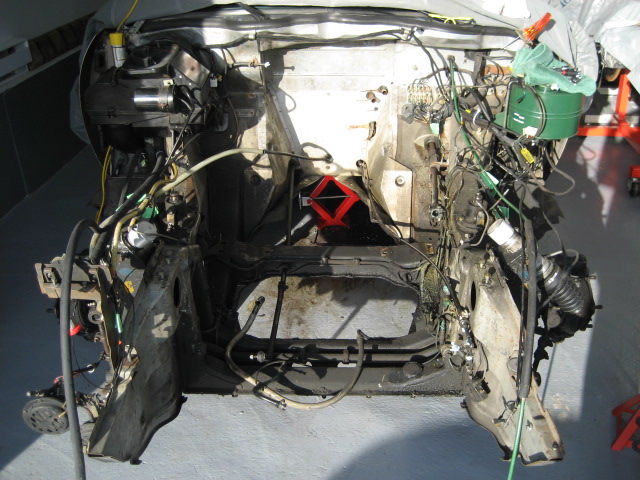

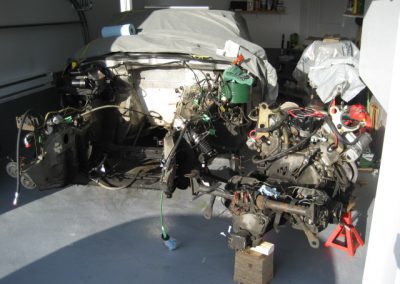

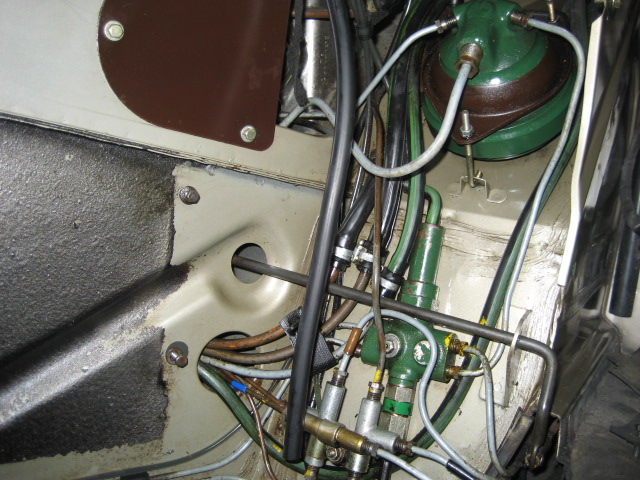

That’s how it looks, and that’s because of this limited space that I didn’t initially want to remove the engine

smie_333

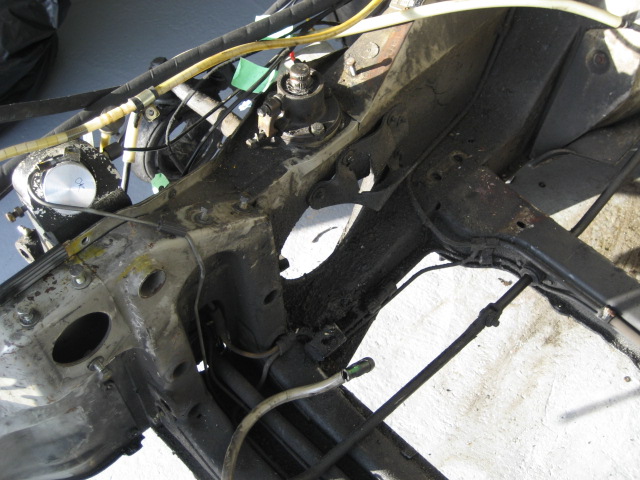

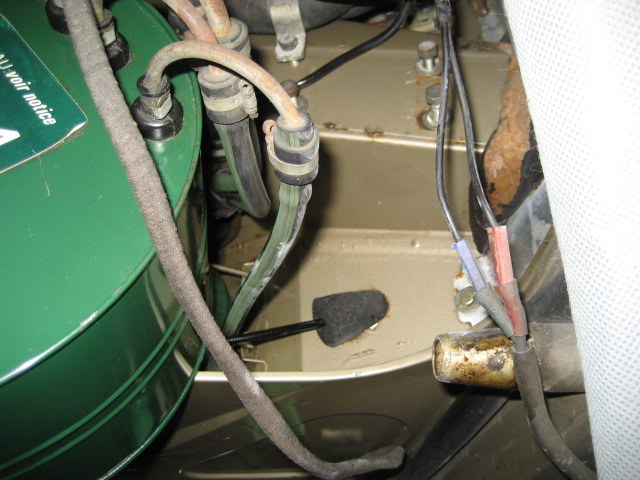

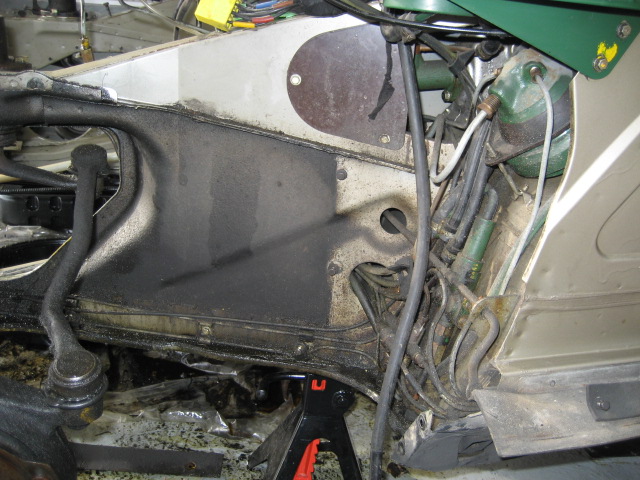

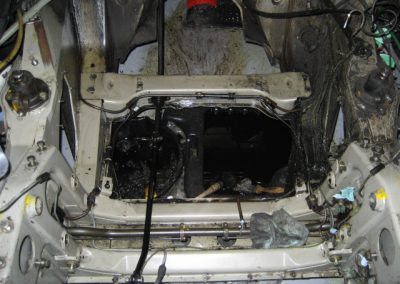

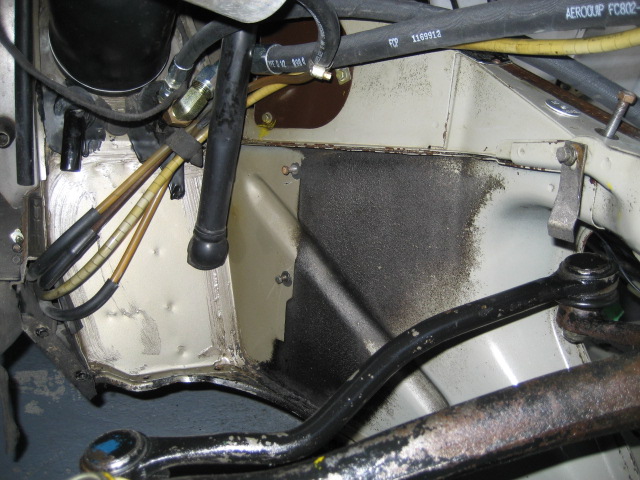

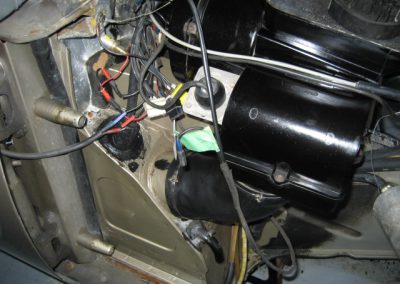

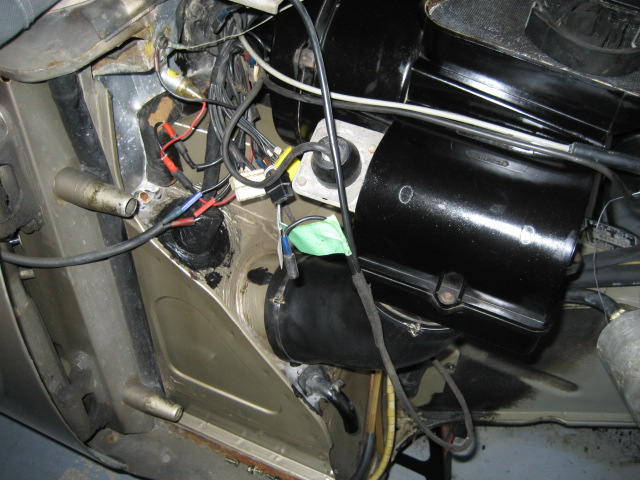

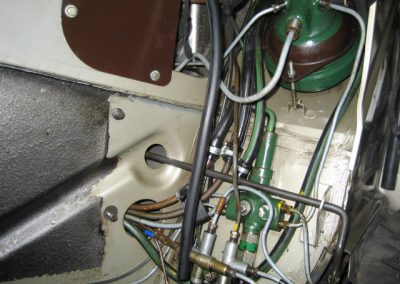

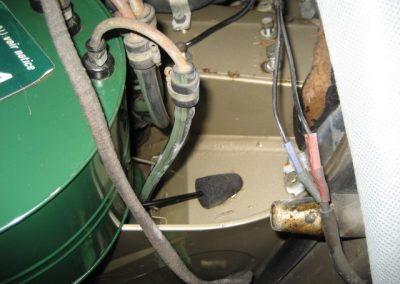

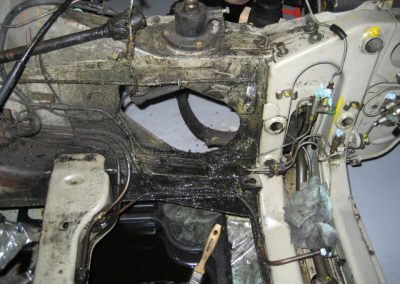

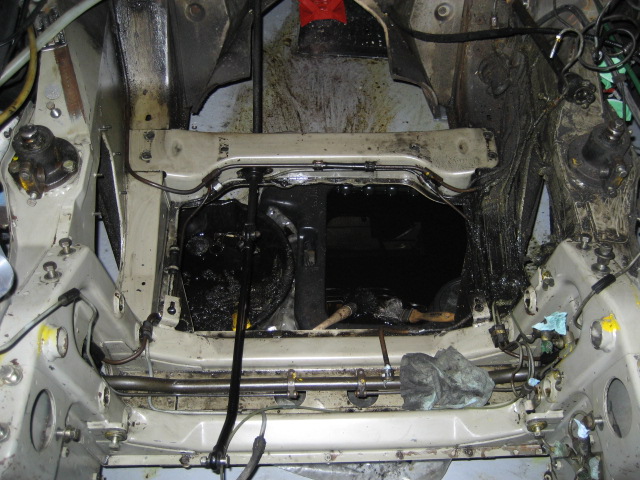

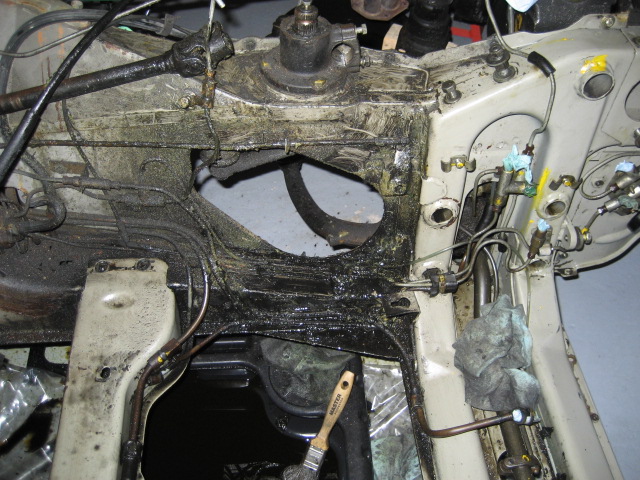

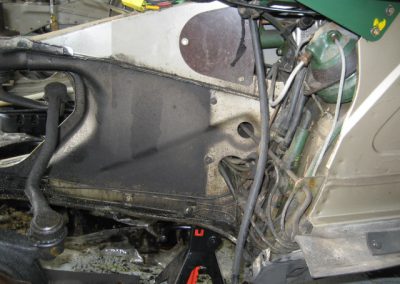

Overview of the cleaning work ahead!

smie_334

smie_335

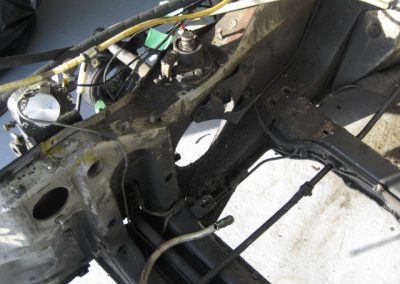

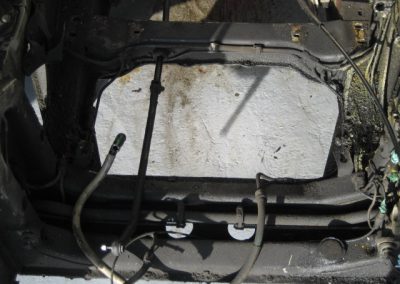

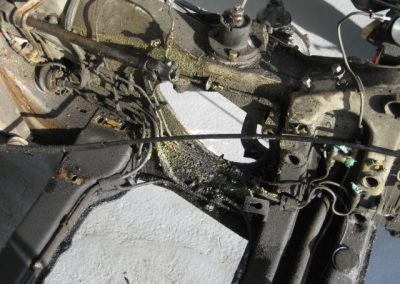

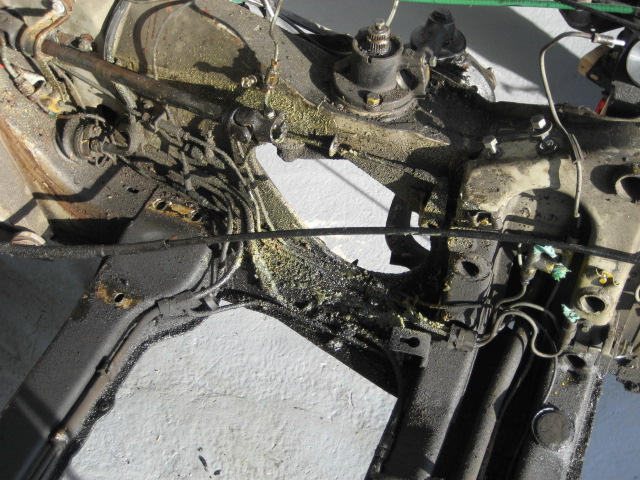

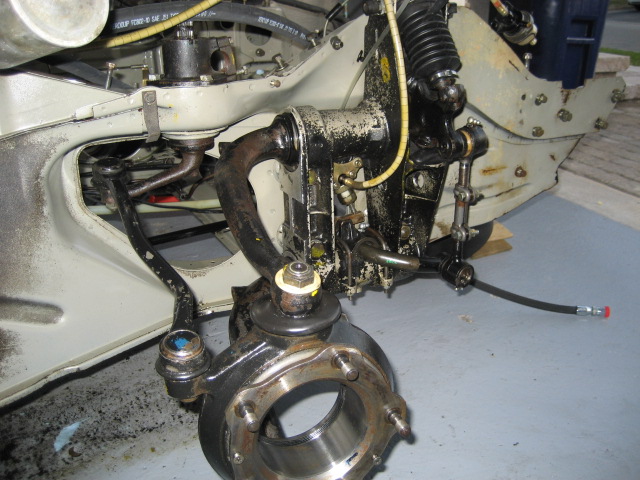

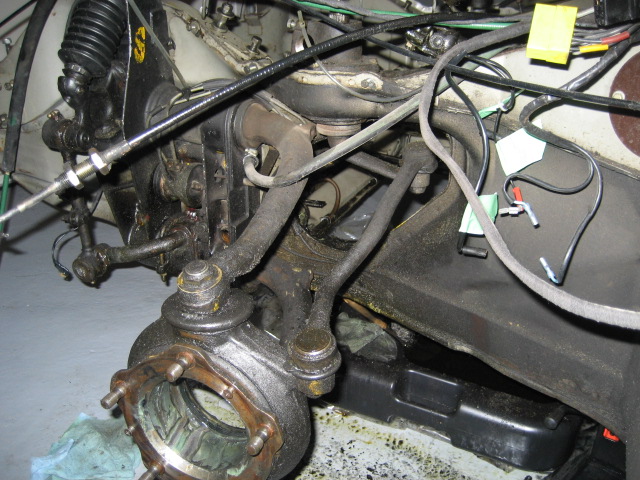

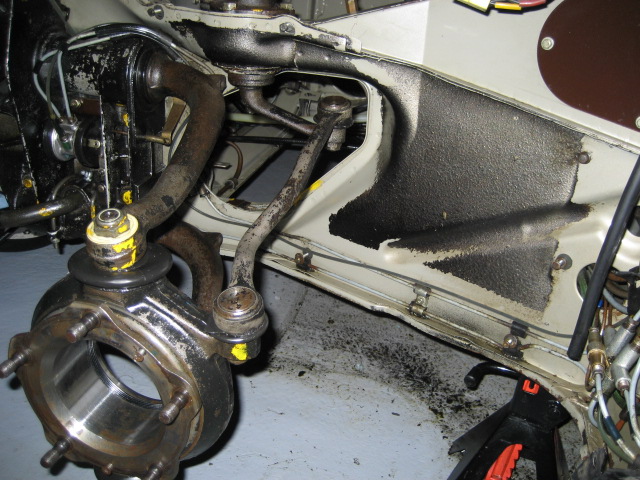

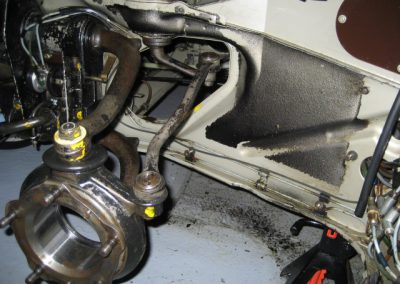

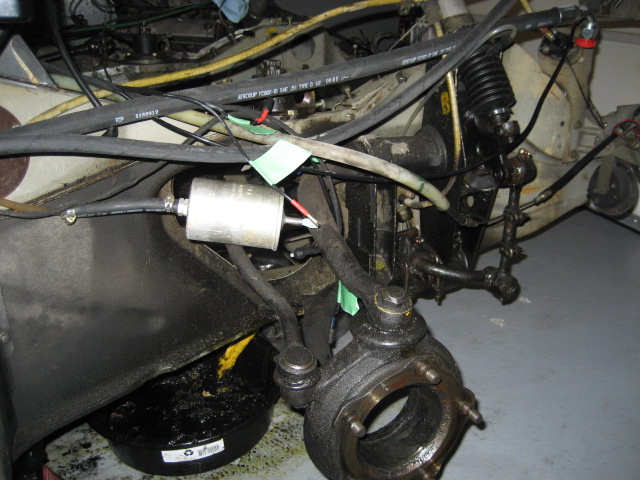

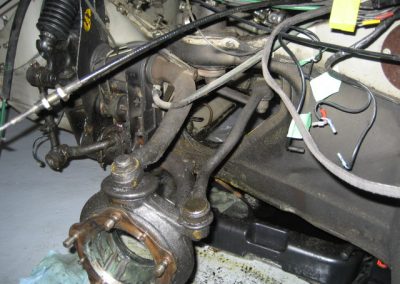

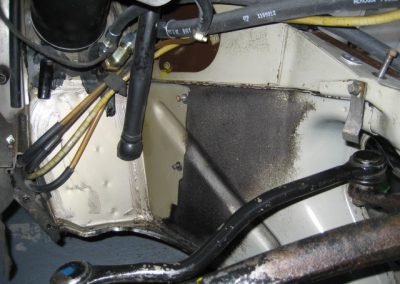

On the left side, the transmission grease is everywhere, I obviously made a mistake somewhere with the transmission boot

smie_336

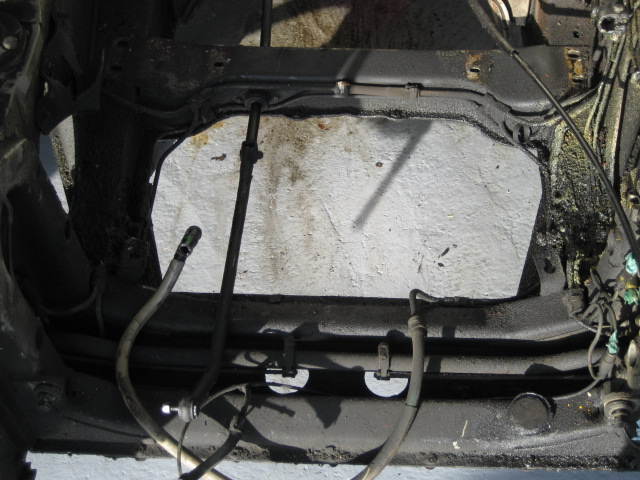

Now that the drivetrain is out, I need to find a way to remove the water pump cover.

smie_337

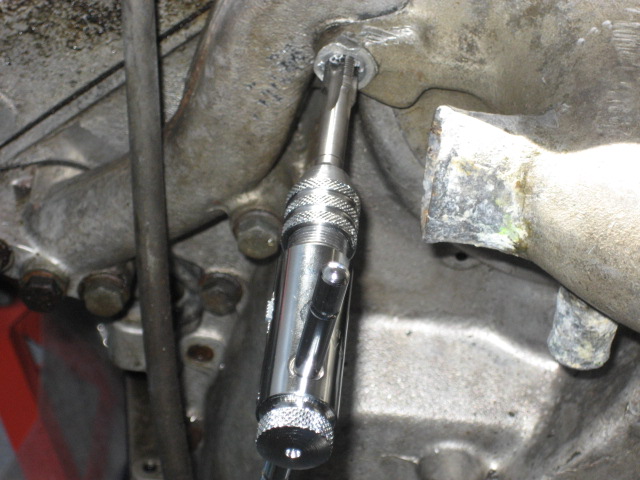

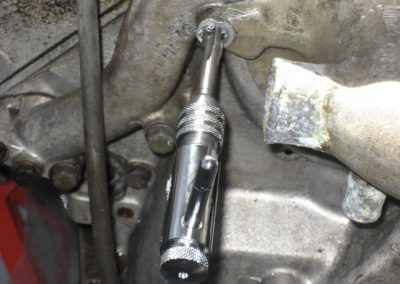

The idea is to drill and tap both cover “handles” and use them as an extractor

smie_338

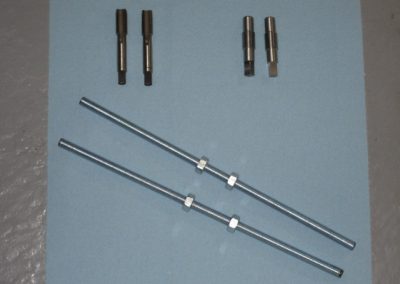

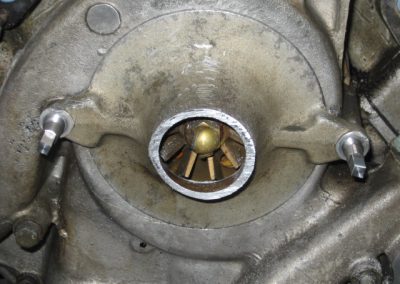

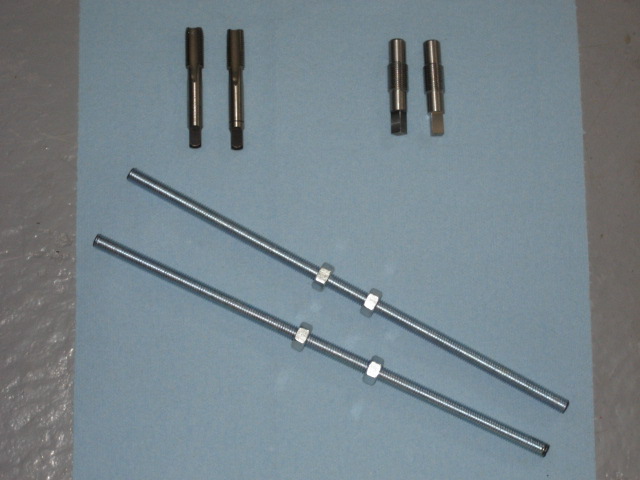

My father had two taps modified (flat end) and has special extraction parts made, here on the upper right, to screw them inside the handles

smie_339

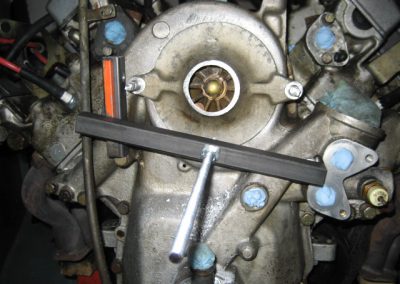

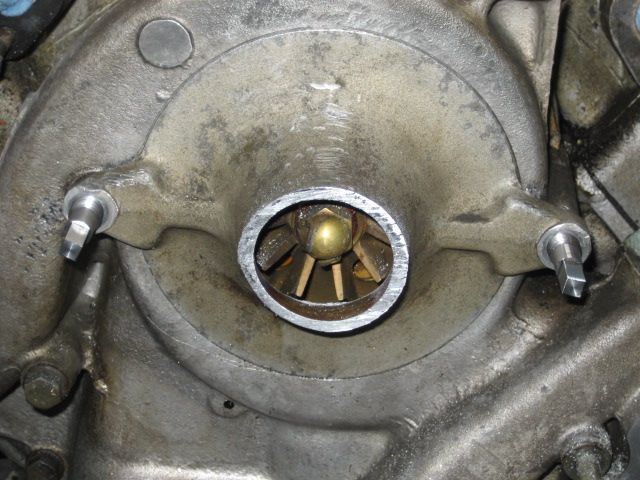

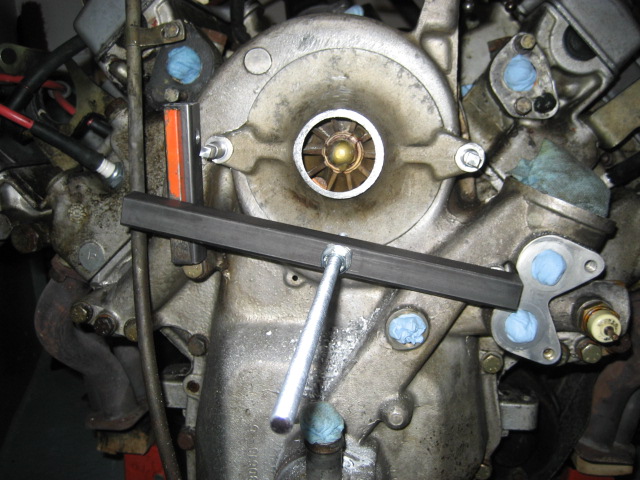

I had to cut the cover to make space for drilling and taping. Once done, I screw in, both handles bend but the cover doesn’t seem to move

smie_340

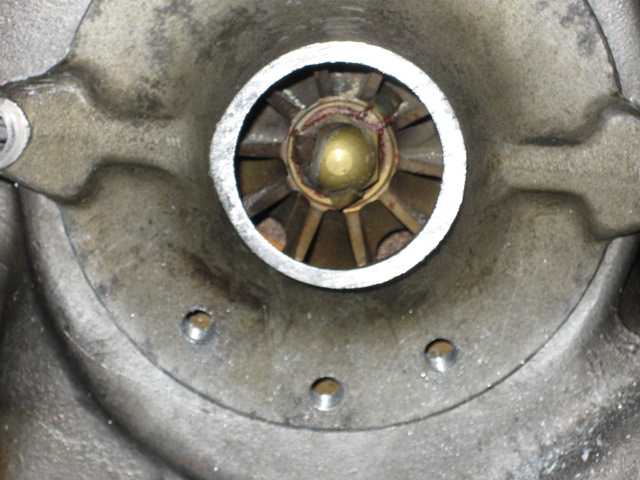

So I have to create more extraction points. I start from the bottom part, which I think is the most stuck portion

smie_341

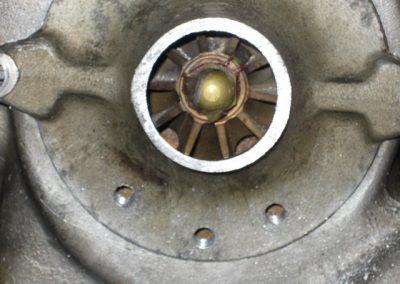

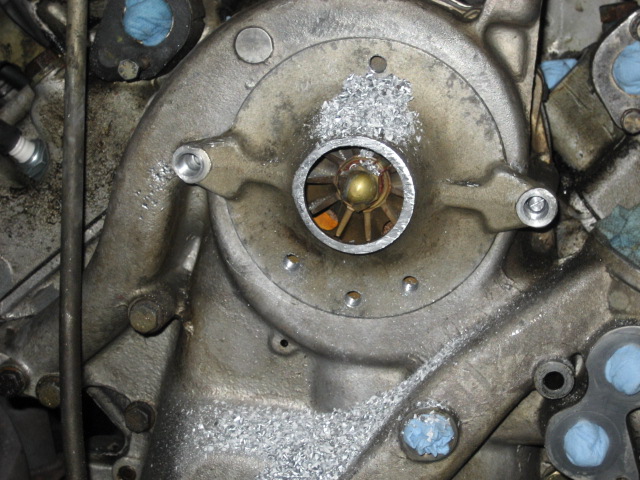

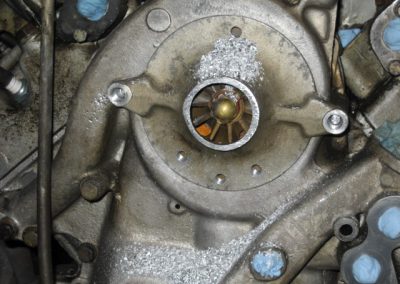

It still doesn’t move, so I drill and tap more points

smie_342

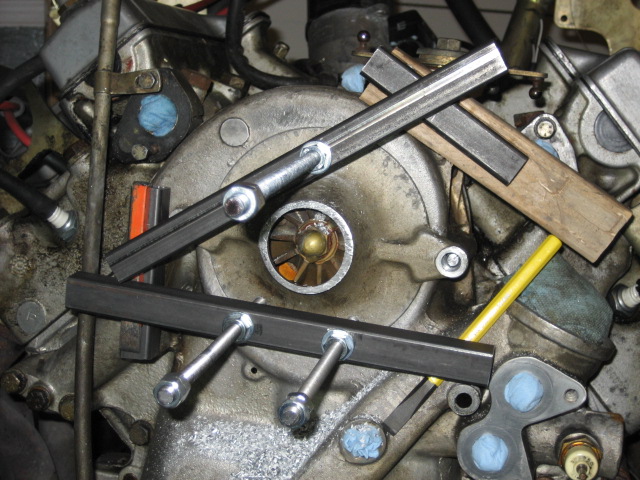

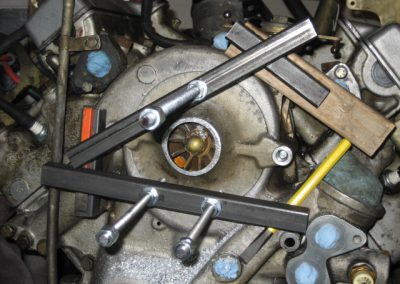

I now go on with the top part, because it still doesn’t move

smie_343

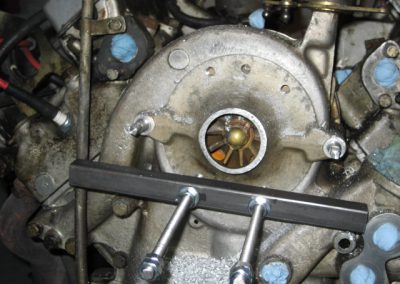

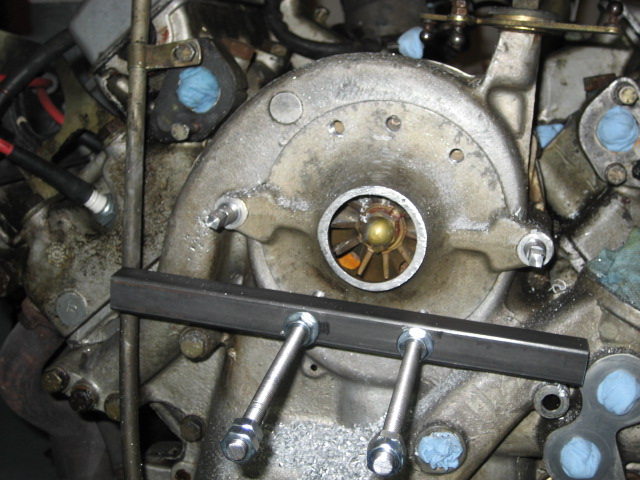

5 extraction points are still not enough, I even broke the tap I did on the top, because I didn’t make it very well

smie_344

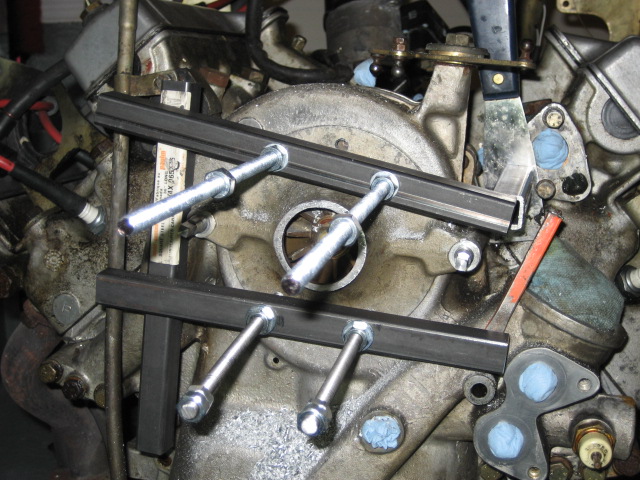

So I drill once again to get a sixth extraction point…

smie_345

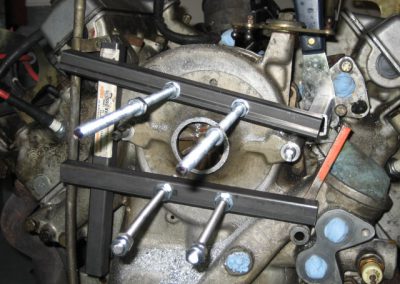

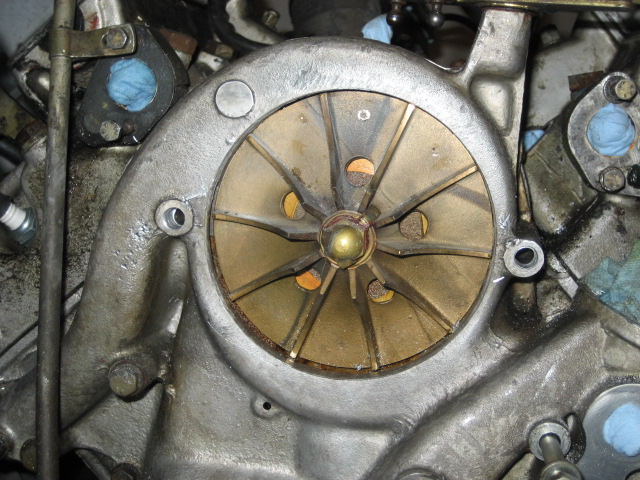

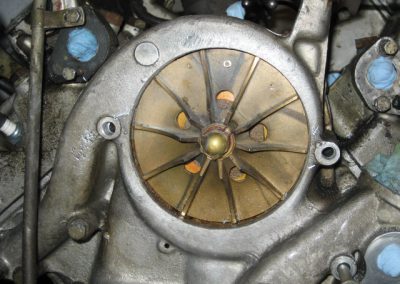

… and this time, it works…

smie_346

… and this f…..g cover finally comes out. I lost a huge amount of time because of it

smie_347

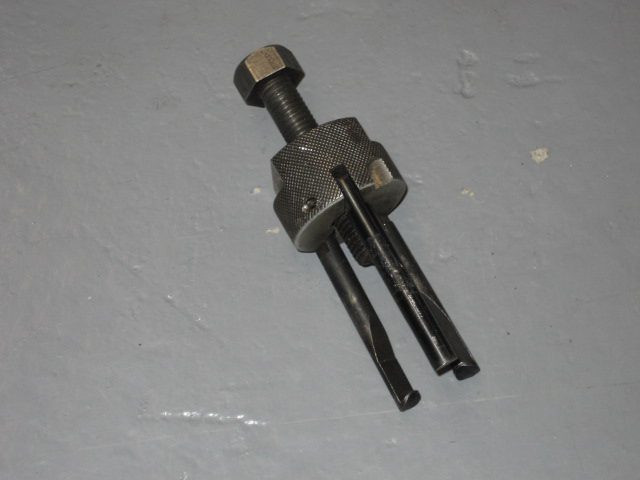

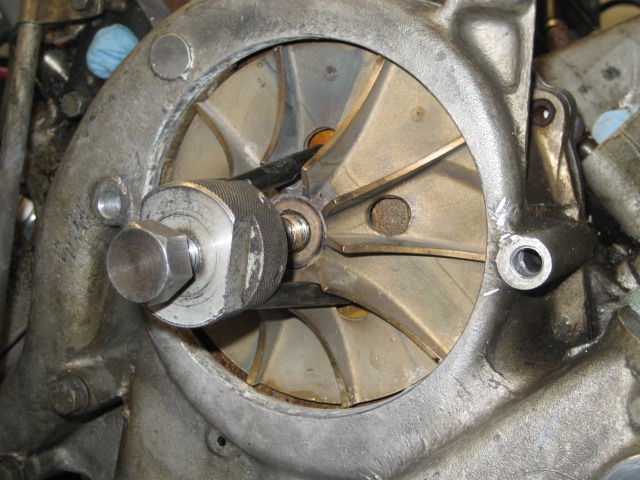

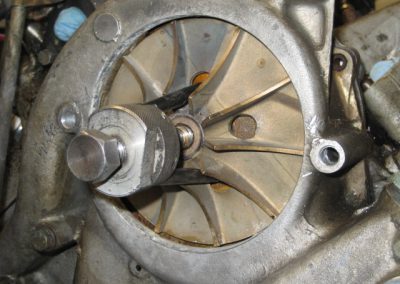

I then go on with the removal of the water pump turbine, with the original extractor that I could borough. Thank you Claude

smie_348

It is of course very good for this special job (because the extraction points are not at a regular angle)

smie_349

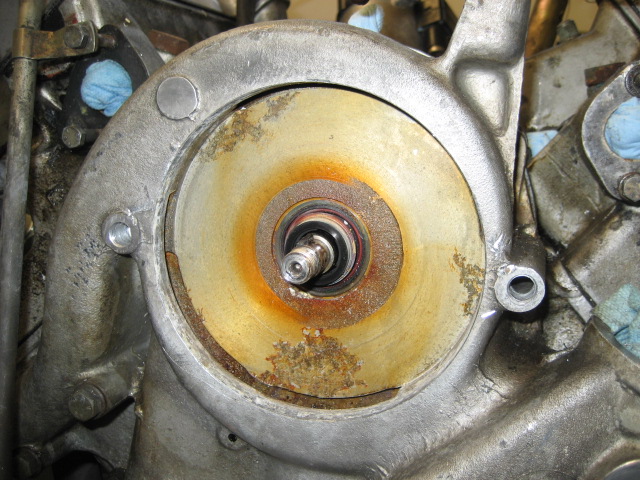

The turbine comes out quite easily

smie_350

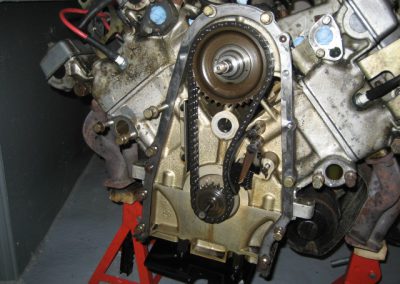

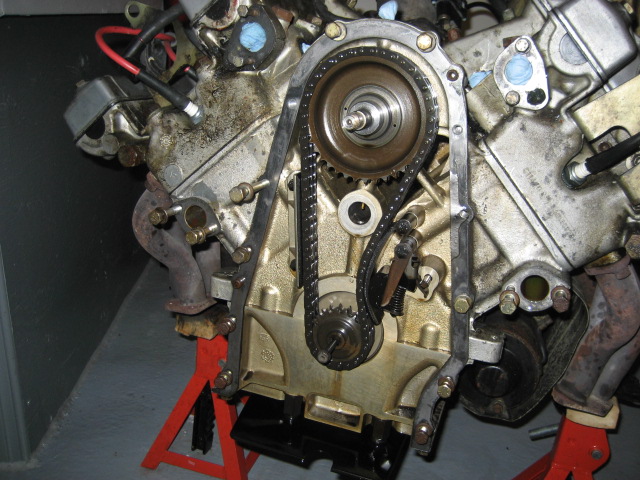

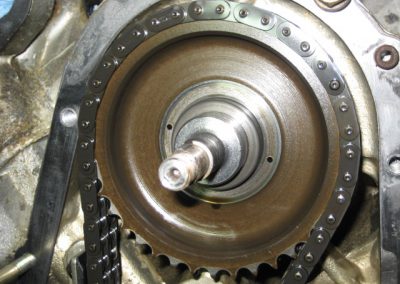

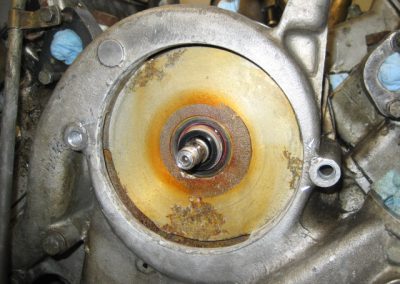

Finally, here is what I wanted to see for a long time! It seems in very good shape

smie_351

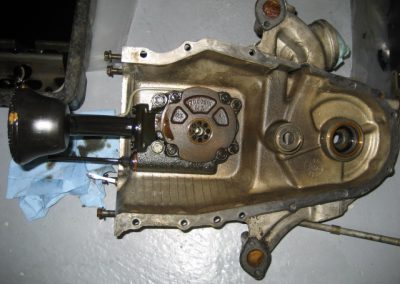

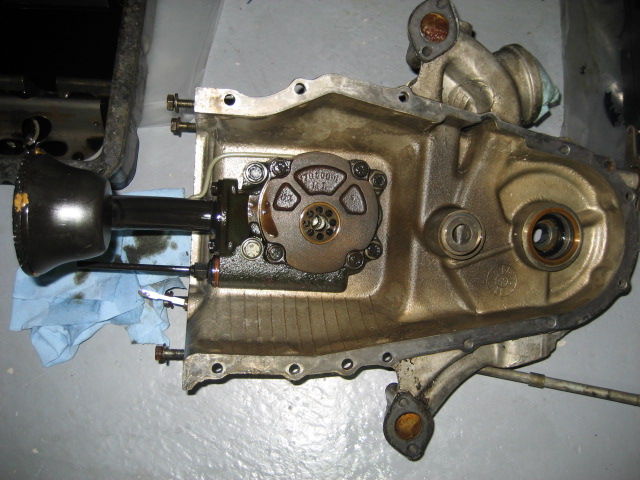

Here is the inside of the timing cover, with the oil pump

smie_352

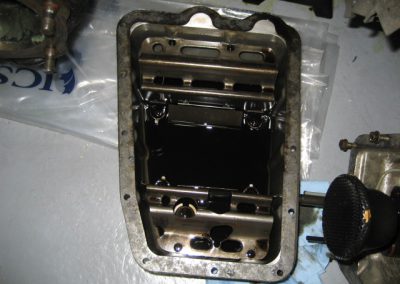

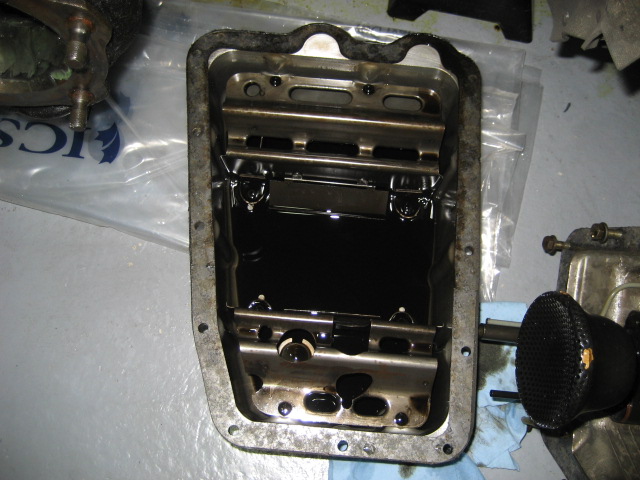

The oil pan is clean

smie_353

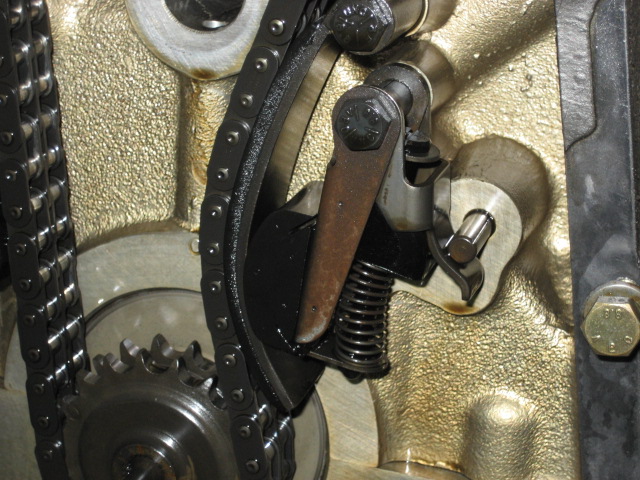

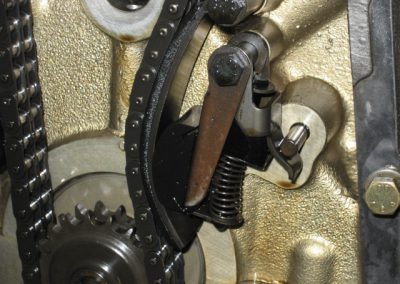

The tensioner still seems in one piece, this is not always the case with SMs

smie_354

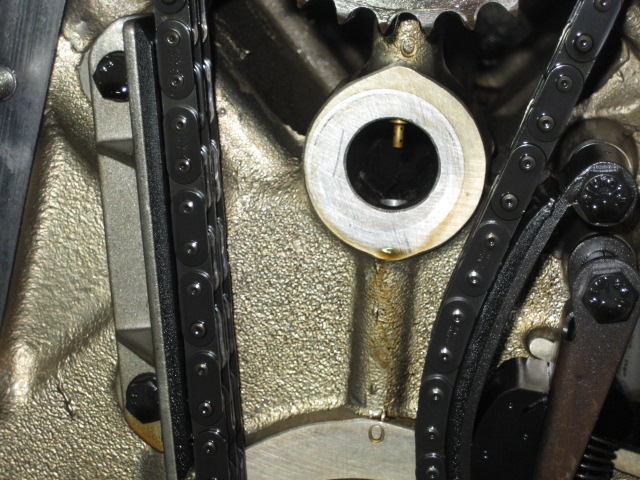

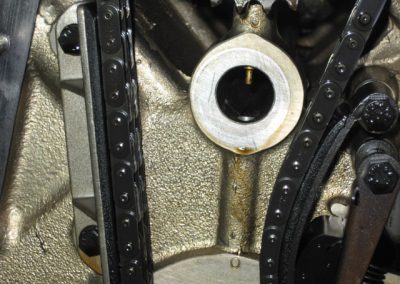

The limiter also seems in one piece

smie_355

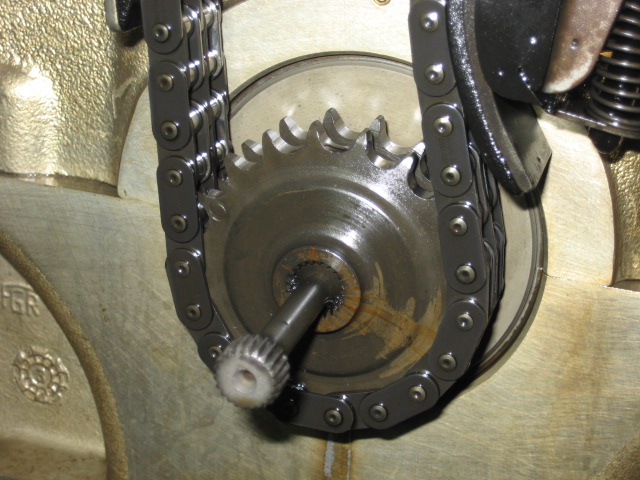

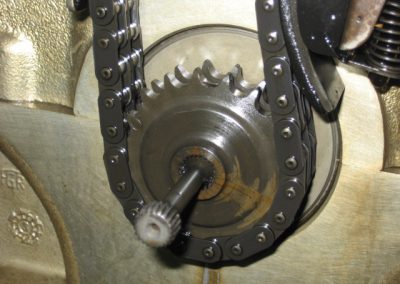

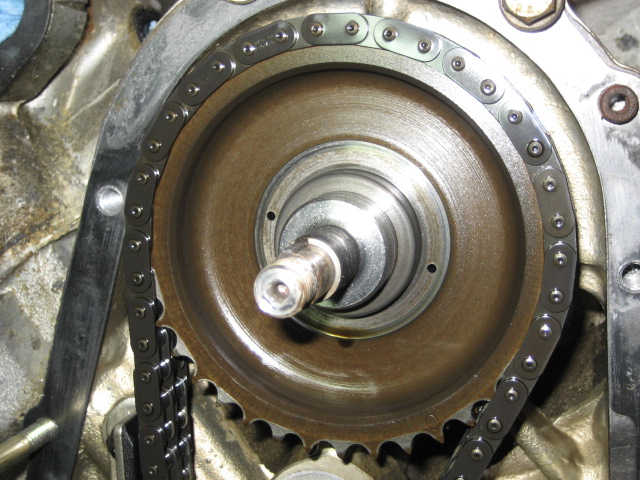

I’m surprised to find a “thin” oil pump axle, I was expecting the reinforced one, I’ll replace it but for the moment I cannot remove it (one new part difficult to remove 😉
