1974 Citroën SM I.E.
Here is my 1974 Citroën SM “Injection Électronique” (IE or EFI). I bought this car to be able to drive a SM without having to wait for the completion of my other SM’s slow restoration. That’s cheating, I know, but that’s so good 😉
In fact I was initially searching for a Citroën DS, but I quickly changed my mind because I now know the SM pretty well, I have all the required documentation and two SM would mean that I would be able to “play” with parts, for example by installing on this ’74 SM IE some parts restored for the ’72 SM, if needed.
I quickly forgot the idea of finding a nice SM here in Canada. There are some but the average condition of this type of car is usually pretty bad if no serious restoration has been done. The goal was to find a car in excellent shape. I asked my father to inspect some cars for sale in France during summer 2006. I fixed myself a “reasonable” budget but as usual I had to go slightly over this budget to find a really nice car.
To read the incredible adventure this car went thru when it was shipped from France to Canada, click here.
Here is one of the pictures my father sent me before buying this car. This picture has made a good part of the decision to chose this particular car.
Main characteristics
- Manufacturing date : October 1974
- Version : SM IE, France
- Serial number : 00SC3599
- Mileage : 47 000 km (indicated when bought)
- Body color : Beige Tholonet
- Upholstery : “Tabac” (tobacco) leather
- Engine : Maserati V6, 2.7 liters
- Engine type : C114.03
- Engine serial number : 303.402
- Supply : Bosch electronic fuel injection (D-Jetronic)
- gearbox : 5-speed manual
- Options : air conditioning, tinted windows, radio
Color codes
- Body : “Beige Tholonet” AC 085
- Body base color : grey AC 092
- Hydraulic parts : green AC 502
- Front grill : “Gris nacré” AC 095
- Air filters : grey AC 140
- Various metal sheet parts : “Brun chocolat” RAL 8017
The car in its initial condition
smie_1
In my driveway, she makes the neighbors curious 😉
smie_2
Sometimes, pedestrians stop to ask me what this car is
smie_3
She’s impressive!
smie_4
There is no front licence plate in Québec
smie_5
I put the rear plate onto the original french one…
smie_6
… to avoid making new holes, there already are 6 of them!
smie_7
The RR wheels are in excellent shape and fit very well
smie_8
It shines because it’s clean and I’m not a good photographer 😉
smie_9
Nice rims and brand new tires, it’s hot!

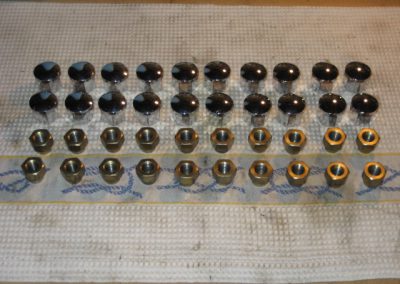

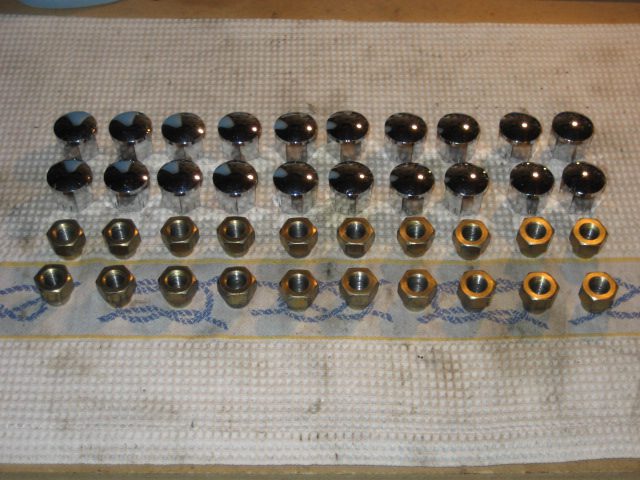

smie_10
Cleaning and polishing the bolt covers has been a long and meticulous job
smie_11
In the back, my “everyday’s” car who temporary lost its space in the driveway
smie_12
The windshield upper trim must be repositioned correctly
smie_13
The alignment of the body panels is not perfect…
smie_14
… but it’s not too bad
smie_15
Big scratches unfortunately temper the right side (rear fender and door)
smie_16
It’s frustrating, I’ll have to do something about that one day
smie_17
The front side, from under, not too bad after a little cleaning
smie_18
Here the rear side, not too bad either, but tar could hide bad surprises
smie_19
Some work on a lift gave an opportunity to see more details
smie_20
smie_21
I’ll need to do something here, it’s not nice
smie_22
Under the engine, this is quite oily of course
smie_23
The side sections…
smie_24
… nice, I believe
smie_25
The leather is in great condition…
smie_26
…congratulations to the previous owners…
smie_27
…I now have to do as well
smie_28
smie_29
Anyway, I treated the interior with a leather cleaner and conditioner
smie_30
The usual lose carpet on top of the pedals
smie_31

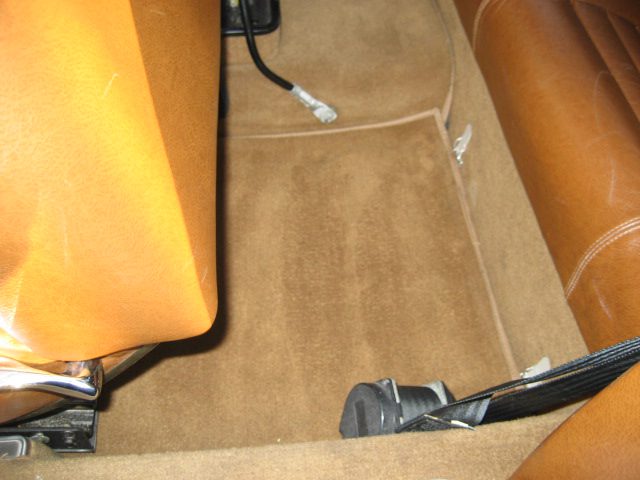

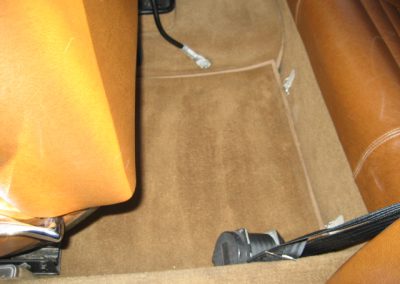

I have bought new carpets…
smie_32
…but replacing them is not really necessary
smie_33
Some cigarette holes. Who had the bad idea to smoke inside my car? 😉
smie_34
The rear seat is perfect
smie_35
On the center console, a dummy car audio system. I’ll probably replace it, with the speakers
smie_36
My two SMs look at each other. I hope none will become jealous 😉
smie_37
smie_38
The roof trimming is nice
smie_39
The trunk interior is not too bad
smie_40
There is some trace of rust. I don’t want to be depressed so I don’t plan to take off the carpet for the moment 😉
smie_41
smie_42
smie_43
Here is the engine compartment when the car arrived at my home in April 2007
smie_44

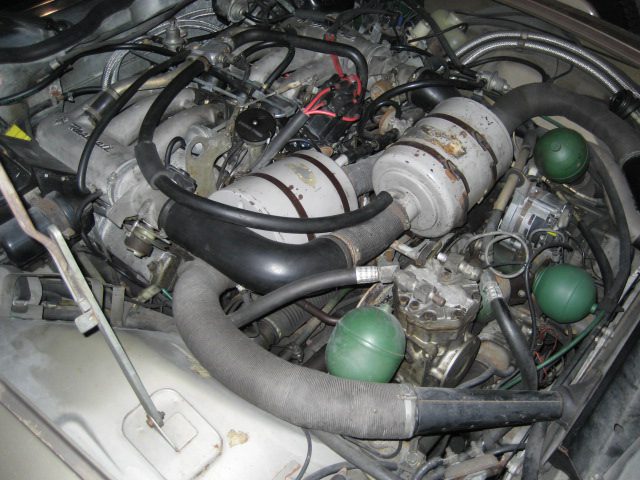

Everything is here, I believe…

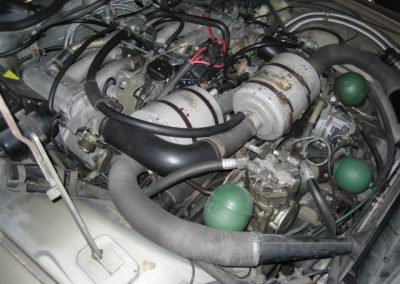

smie_45
…but we can’t say that it’s clean
smie_46
Air filters are ugly
smie_47
The hydraulic pump and regulator seem to be in good shape. The main accumulator sphere is quite recent

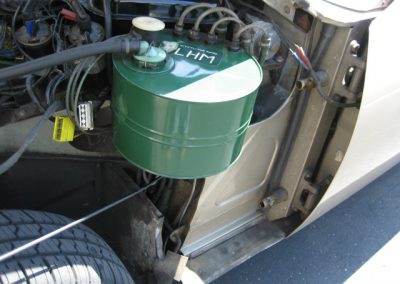

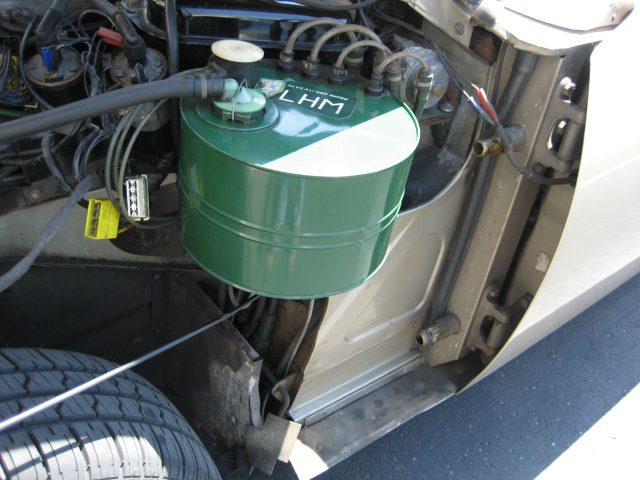

smie_48
After a little cleaning, the hydraulic tank is now nice. The brake accumulator sphere (behind the tank) seems ok
smie_49
With new front boots and buffers, I should not have any trouble
smie_50
There is still some work on the rear suspension. Boots would have to be replaced and, ideally, the hydraulic cylinders should be overhauled (the front ones too)
The car after a partial restoration
Here are some pictures showing the engine compartment after its restoration
smie_51
So here is the engine compartment in April 2010, three years (already) after the arrival of the car at home

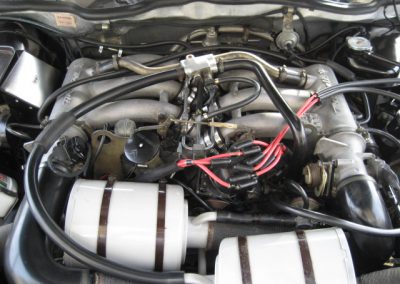

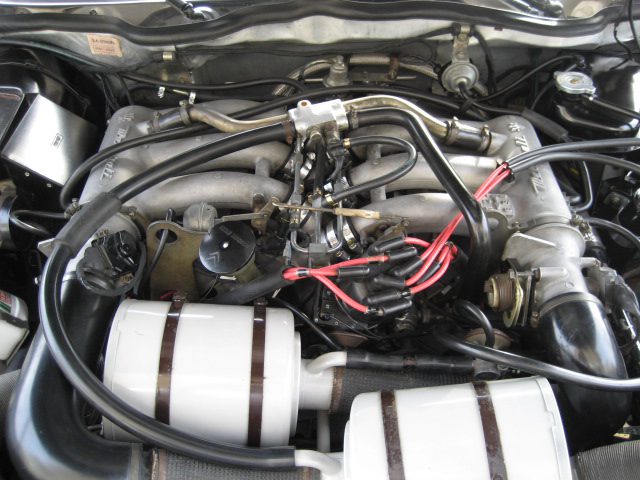

smie_52
Mostly cleaning, but also some repainted parts, it makes a big difference
smie_53

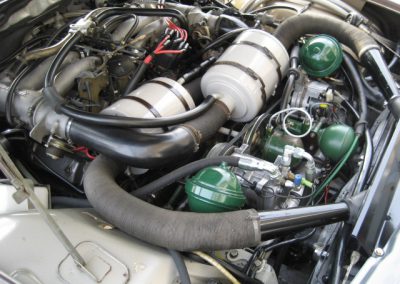

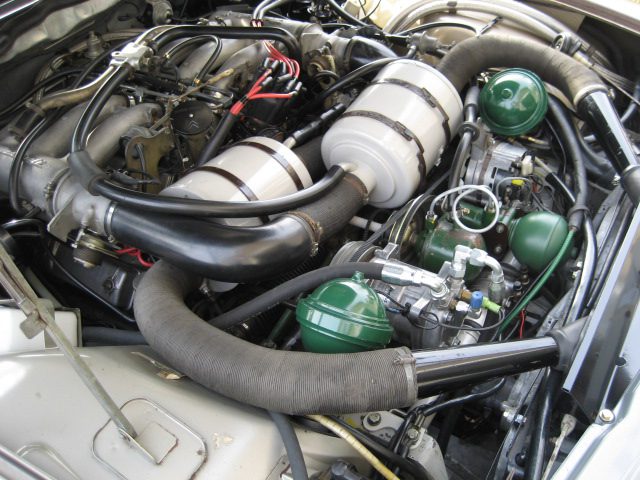

This is not just cleaner, it also works better…

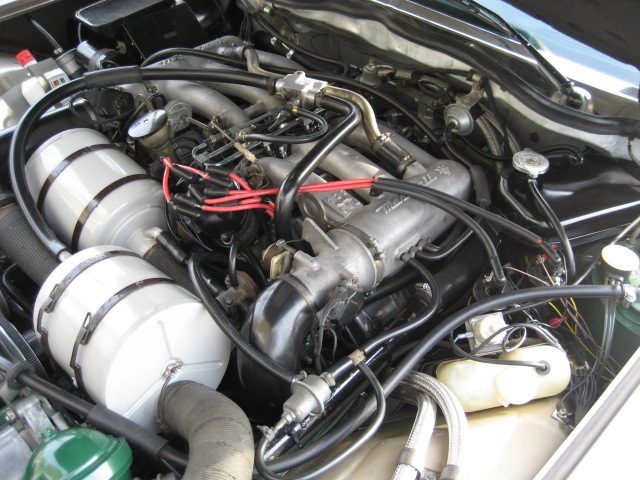

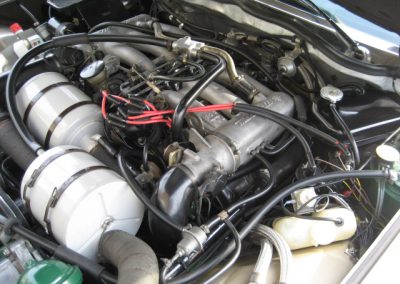

smie_54
… because a lot of servicing has been done between 2007 and 2009

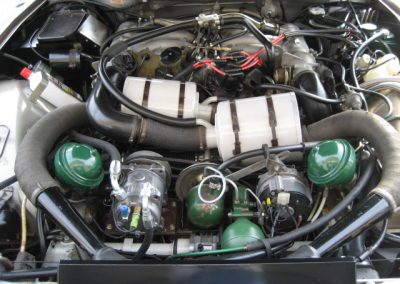

smie_55

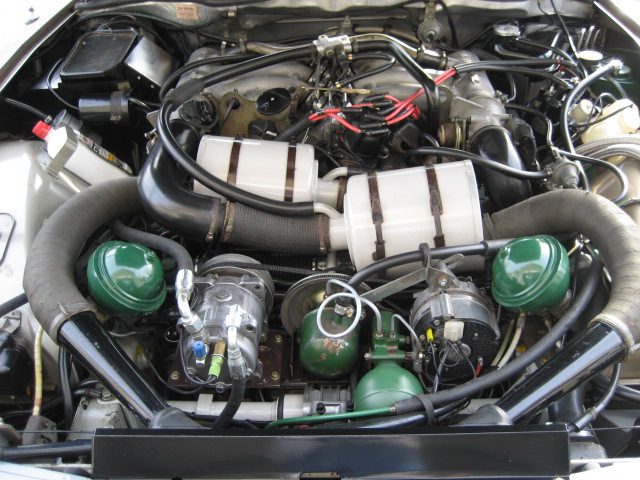

This is mainly the work done during 2009 that made a difference…

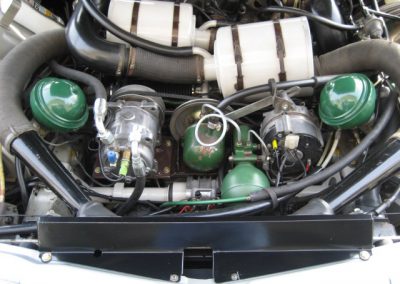

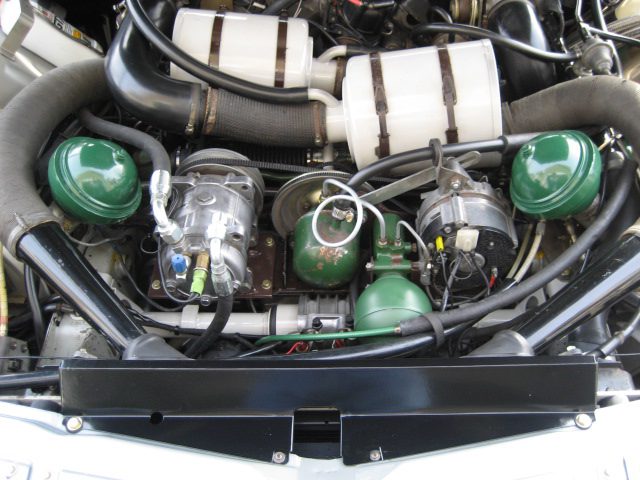

smie_56
… because when you remove almost everything, you can do a deep cleaning

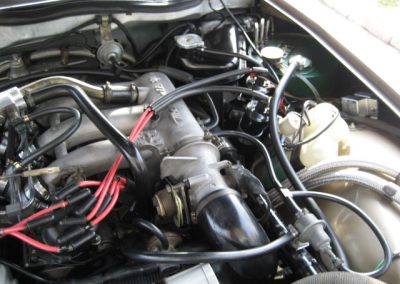

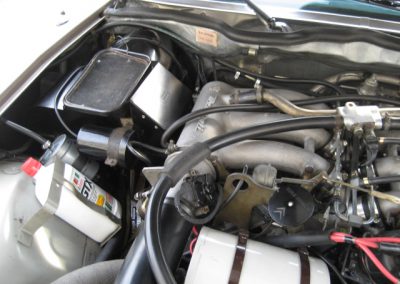

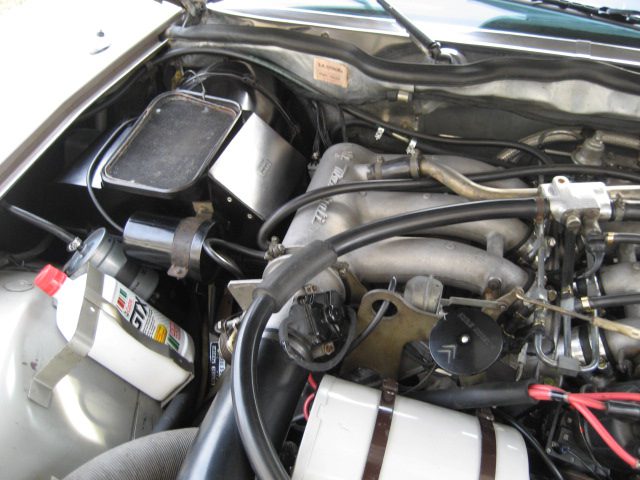

smie_57

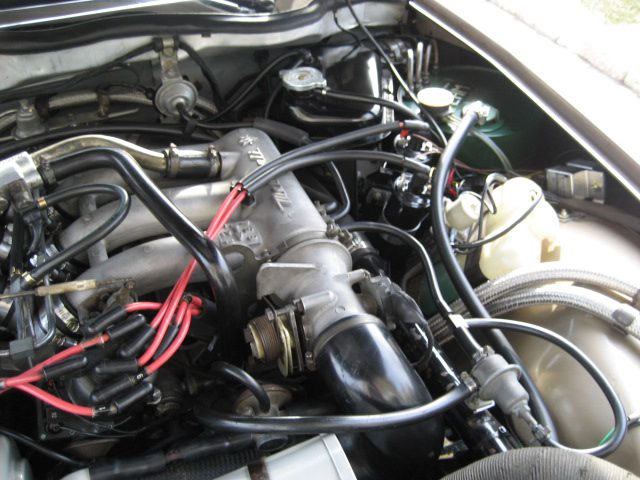

smie_58
